PJ 14K & Larger Dump Trailers

---

Specs

• 28" Deck Height
• 12,000# Drop Leg Jack *BP Model
• Dual 10,000# Drop Leg Jacks *GN Model
• 14,000# GVWR
• Posi-Lube Axles w/ Brakes on Both Axles
• 6 Leaf Slipper Spring Suspension
• 235/80R16 Radial Tires on Black Wheels
• 8" I-Beam Frame & Tongue
• Quick Plug On Board Charger
• 1/8" Tread Plate Steel Fenders

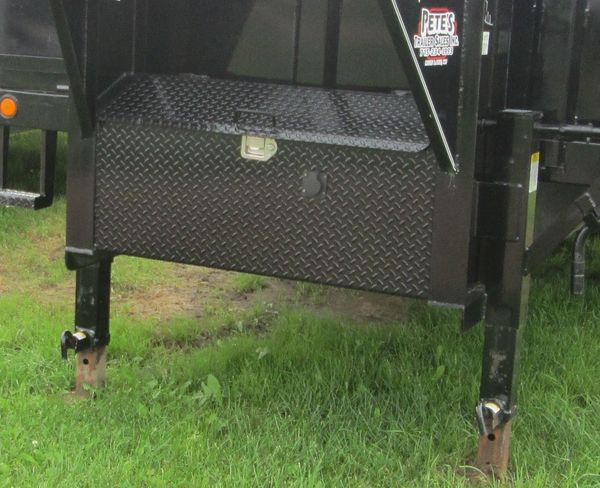

• Locking Toolbox
• 2 Way Gate- Barn Door & Spread
• 78" Slide In Ramps
• 4 D-Rings *Welded Inside the Box
• 40 Degree Dump Pitch
• Power Up/Power Down
• 12VDC Hydraulic Pump w/ Deep Cycle Battery
• 5"x17" Hydraulic Cylinder w/ Scissors Lift *12' & 14' Models
• 5"x21" Hydraulic Cylinder w/ Scissors Lift *16' Models
• 12' Control Cable
• 3" Channel, 16" O.C. Crossmembers
• Electric Breakaway Kit w/ Charger
• Roll Out Tarp
• 10 gauge Steel Bed & Sides
• 24" High Sides w/ Stake Pockets
• Flush Mount LED Lights
• Sealed Wire Harness
• Powdercoated
• Tarp Kit

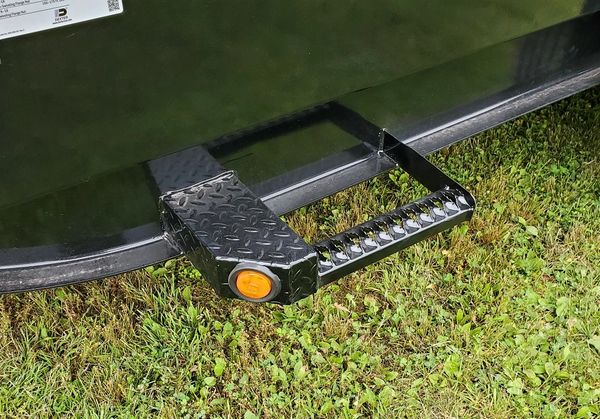

• Drivers Side Monster Step
• Zinc Primed
• Spare Tire Mount *BP Model
• Spare Tire & Mount *GN Model
• Cold Weather Wiring Harness

Sizes

• 83" Wide x 12' Long- 6.14 cu yards Capacity
• 83" Wide x 14' Long- 7.17 cu yards Capacity
• 83" Wide x 16' Long- 8.19 cu yards Capacity

​Couplers

• 2 5/16" Adjustable Channel Mount- 14,000-20,000#
• 3" Channel Mount Pintle Eye-20,000#
• 2 5/16" Gooseneck-25,000#

Axles

• 7,000# Drop Axles (12"x2" Electric Brakes)- 24" Bed Height
• 7,000# Straight Axles

Color

​​*Zinc Primer Included

*Anything other than Black is Additional Charge

• Black Powdercoat
• Grey Powdercoat
• Red Powdercoat
• White Powdercoat
• ​Desert Tan Powdercoat
• Tractor Orange Powdercoat

 Other Options

• Solar Battery Charger
• Spare Tire *BP Model
• Aluminum Rims for 8 Bolt, 7K Axles
• 12" O.C. Crossmembers
• Power Up/Power Down & Gravity Down Upgrade
• Wireless Remote Control
• 9,500# Super Winch
• Winch Plate
• 14 Ply Tire Upgrade
• 2 Speed Jack
• Weld On D-Rings
• Removable Stake Pocket D-Rings
• 24" Mesh Side Extensions
• Riser Toolbox *GN Model
• Deck on the Neck *GN Model

Specs

• 26" Deck Height
• 20,000# GVWR
• Adjustable Rigid 2 5/16" Ball Coupler
• Safety Chains
• 1 Drop Leg Jack-10000# *2 on GN Model
• 2 Dexter Oil Bath Axles- 10,000#
• Torsion Suspension
• 4 - 17.5" Black Mod Wheels
• 235/75/R17.5 LR-J 8-hole SINGLE Tires
• Electric Breakaway Kit w/ Charger
• 1/8" Treadplate Steel Fenders
• Lockable Toolbox *houses battery & pump
• 2 Way Gate *barn door & spreader gate
• 6' 6" Slide In Channel Ramps
• 4 D-Rings *welded inside the box
• 40° Dump Pitch
• 12VDC Hydraulic Pump
• 6" x 21" Hyd. Cylinder w/Scissor Lift
• 12' Control Cable
• Tarp Kit
• 10" x 19 lb I-Beam Main Frame & Tongue
• 3" Channel Crossmembers
• 16" on Center 7gauge Steel Bed
• 83" Wide Bed
• 7 gauge Steel Sides
• 36" High Sides
• DOT Approved Flushmount Lifetime LED Lights
• Double Insulated Harness w/Cold Weather Cord
• 7-way Stake Pockets
• Sand Blasted, Acid Washed, Powdercoated
• Deep Cycle Battery
• 110V Integrated Trickle Charger
• 2 Jacks *GN Model
• Lockable Front Toolbox *GN Model
• 10 year Dexter Axle Warranty
• Spare Tire & Mount

Sizes

• 83" Wide x 16' Long

Couplers

• 2 5/16" Adjustable Rigid Mount-25,000#
• 3" Channel Mount Pintle Eye-36,000#
• 2 5/16" Gooseneck-25,000#

Axles

• 2- 10,000# Axles

Color​​

*Zinc Primer Included

*Anything other than Black is Additional Charge

• Black Powdercoat
• Grey Powdercoat
• Red Powdercoat
• White Powdercoat
• ​Desert Tan Powdercoat
• Tractor Orange Powdercoat

Other Options

• Removable Deck on the Neck
• Hydraulic Jacks
• Rear Stabilizer Jacks
• 48” Tall Sides
• Top Riser Toolbox
• Winch Plate
• Solar battery Charger
• 12” OC Floor Crossmembers
• Power Up / Down w/ Gravity Down Option
• 24” Tall Side Extension
• 2 Speed Jack

Specs

• 39" Deck Height
• Front Toolbox
• Dual 10,000# Drop Leg Jacks
• Rubrail & Stake Pockets

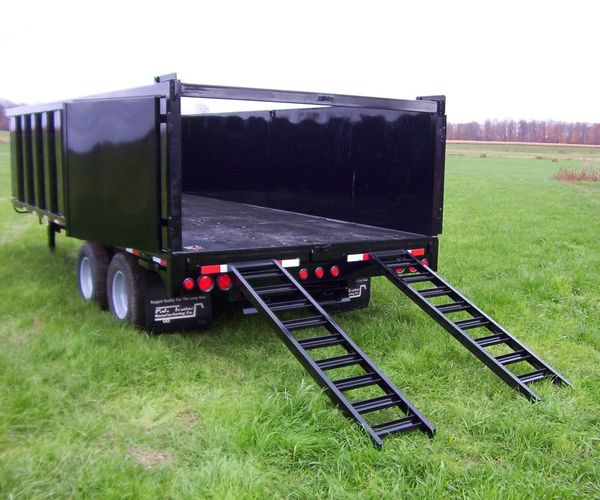

• Ladder
• 5-Leaf Slipper Spring Suspension
• 235/80R16 Radial Tires on Black Rims
• Barn Door Gate
• 70" Ramps w/ holders
• Quick Plug On Board Charger
• 45 Degree Dump Pitch
• 12VDC Hydraulic Pump w/ Deep Cycle Battery
• 10 Ton Scissor Lift w/ Dual Cylinders
• Power Up & Power Down
• 12"x 19lb I-Beam Main Frame, Riser & Neck
• 3" Channel Crossmembers, 16" O.C.
• 2"x6" Tubing Deck Frame
• 96" Wide Bed
• 10 gauge Steel Bed
• 4 Flush D-Rings
• 48" high 12 gauge Removable Sides
• Flush Mount Lifetime LED Lights
• Spare Tire & Rim Included
• Sealed Wire Harness
• Powdercoated
• Cold Weather Wiring Harness
• Zinc Primed

 Color​​

*Zinc Primer Included

*Anything other than Black is Additional Charge

• Black Powdercoat
• Grey Powdercoat
• Red Powdercoat
• White Powdercoat
• ​Desert Tan Powdercoat
• Tractor Orange Powdercoat

Sizes

• 96" Wide x 20' Long- 17.78 cu yards Capacity

Couplers

• Gooseneck 2 5/16" Coupler-25,000-30,000# GVWR

Axles

• 2- 10,000# Axles (12.25"x3.5" Brakes)
• 2- 12,000# Axles (12.25"x5" Brakes)

*Disc Brakes are Available

Other Options

• Wireless Remote Control
• Solar Battery Charger
• 12" O.C. Crossmembers
• Riser Toolbox
• Tarp Kit
• Power Up & Down & Gravity Down Upgrade
• 14 Ply Tire Upgrade
• Winch Plate
• 9,500# Winch
• Hydraulic Speed Jacks inc Front Toolbox-12,000#
• 2 Speed Jacks, 12,000# ea
• HD Semi Trailer 2X Jacks- 25,000#
• 8'x 8' Deck on the Neck
• Side Mount Toolbox
• ​Grain Chute
